Product table tutorial

Difficult: Beginner 😊
Time required: 10 minutes 🚀

In this tutorial we’ll be creating a product table to show our woocommerce shop’s auto-parts products in a smart table layout. This tutorial is designed to be super simple so that anyone with a woocommerce shop can easily follow along.

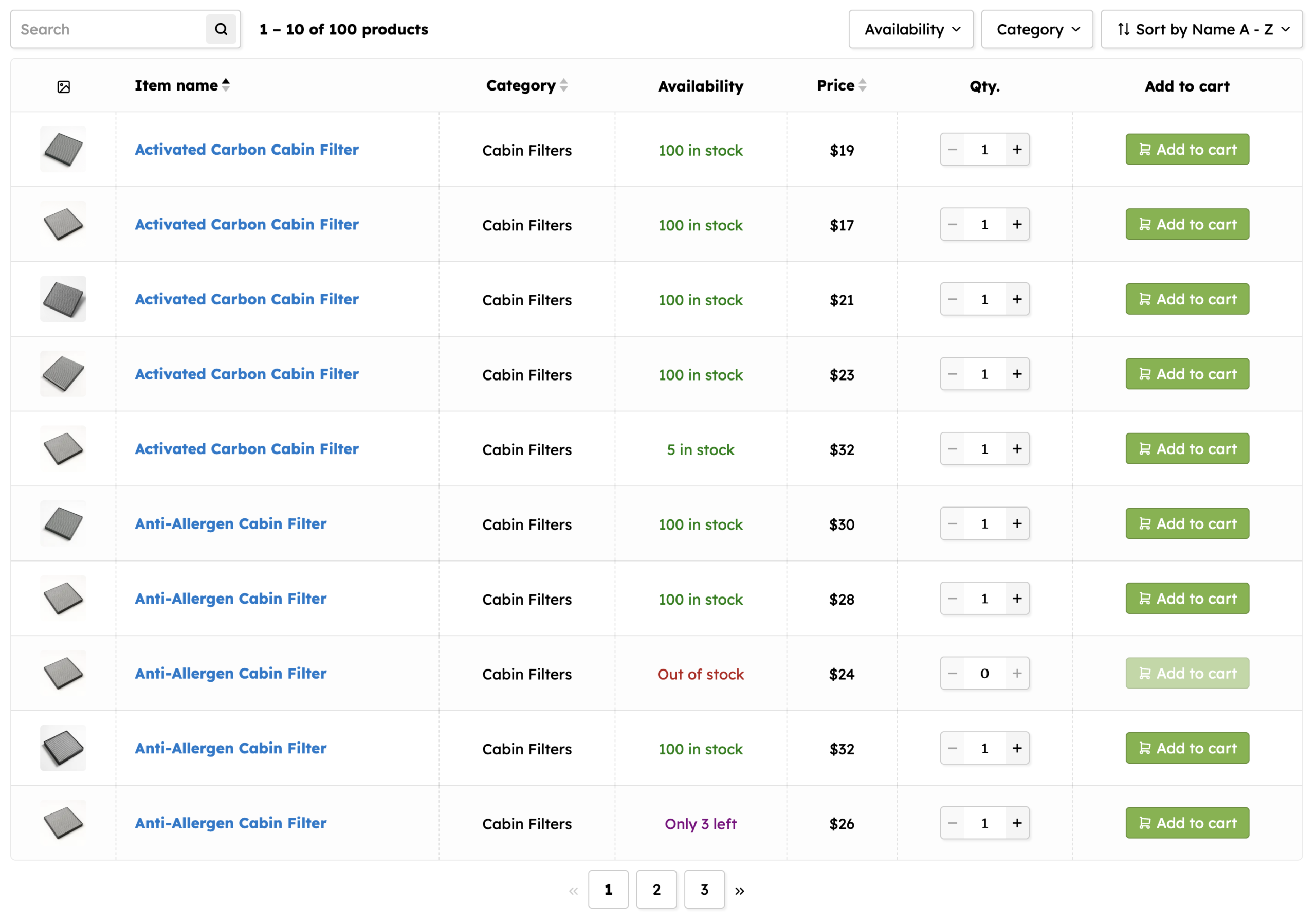

Our final woocommerce product table will look like this:

After you’ve completed this tutorial you’ll be able to setup similar excellent product tables for your shop and customize them based on your specific requirements. If you wish you may proceed to more advanced tutorials for more complex layouts and features.

Ensure your products are ready

Before we begin please ensure your woocommerce products have all the properties that we wish to show in our new product table:

  • Name
  • Featured image
  • Price
  • Availability / stock
  • Category

Here’s an example of an auto-parts product from our tutorial site with all the above mentioned properties:

Install the product table plugin

To create a woocommerce product table you need to have one of our product table plugins installed and activated on your site:

  1. WooCommerce Product Table PRO: This is the PRO version of our plugin with premium features for the best product tables.
  2. Product Table & List Builder for WooCommerce: This is the free version of our product table plugin with solid starter facilities.

While we recommend the PRO version of our plugin for its exclusive, premium features, you can use either of the two plugins to follow along with this tutorial.

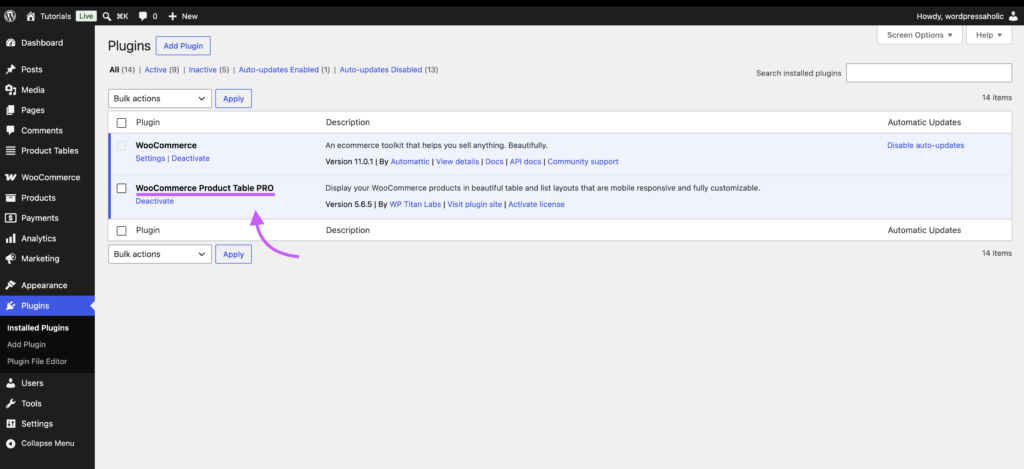

Once you’ve ensured your woocommerce products are ready and you’ve installed our plugin, you’re all set to create a new product table for your shop.

Create new product table

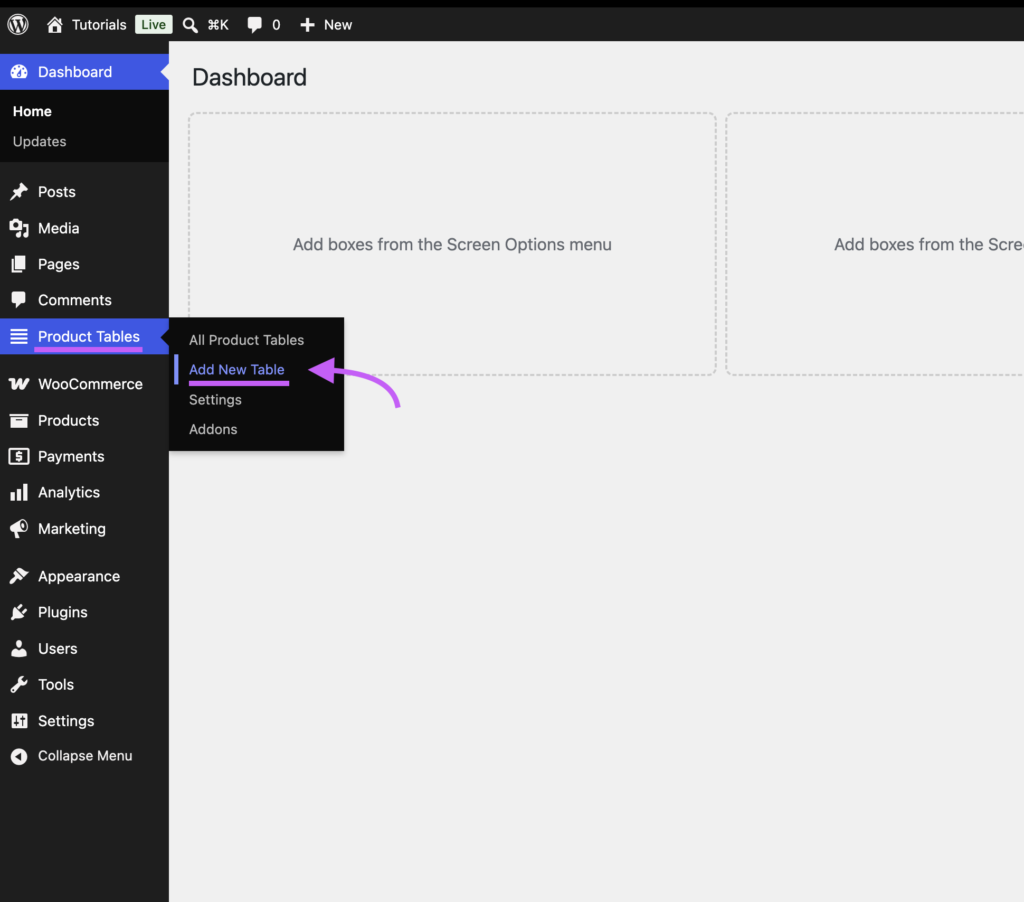

To create a new product table go to your admin dashboard wp admin → product tables → add new table

Select a table preset

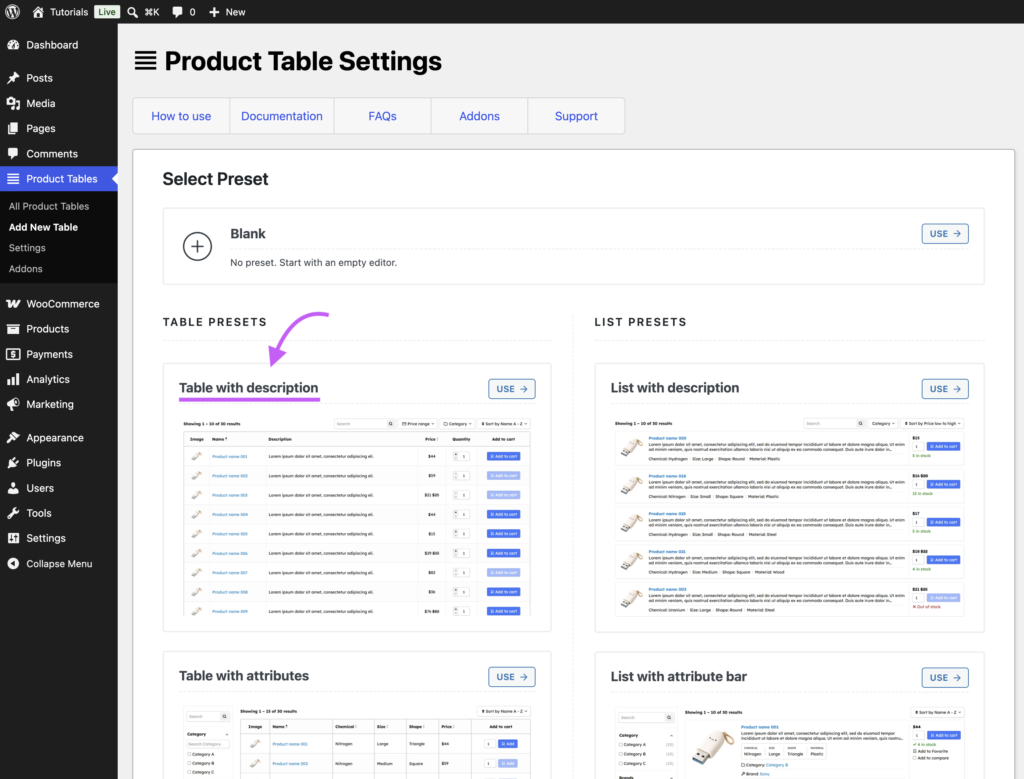

A presets screen will open up where we can select a product table preset that is closest to our requirement. The preset called ‘Table with description’ has most of the product table columns that we require. We just need to replace its ‘description’ column with new category and stock columns. So lets use this preset to create our new product table by clicking on it.

Table editor introduction

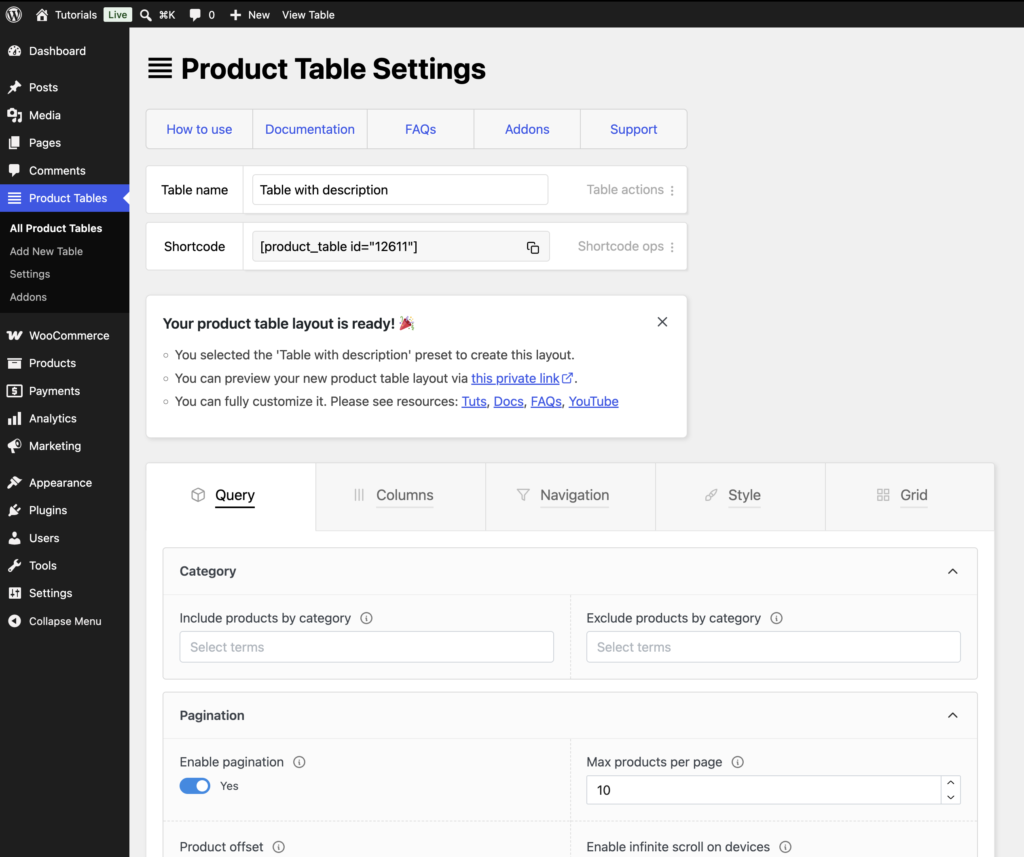

This leads us to our product table editor page where the settings of our preset product table have already been loaded in.

Following are the main sections on this table settings page:

  1. At the very top we have plugin resource links to help you if you get stuck or if you generally wish to explore further information about the plugin.
  2. Then we have the table name and shortcode. You can change the table name if you want. And use the shortcode anywhere on your site to view your product table.
  3. Below that you have some information about the table preset that you’ve used to create the current table. This message can be dismissed.
  4. Next we have the table settings tabs where you can configure various aspects of the product table:
    • Query: Choose which products will be displayed in the product table.
    • Columns: Setup the columns and product information you wish to display in the table.
    • Navigation: Configure the search and filtering options for your product table.
    • Style: Modify colors, sizes, borders etc to fine tune your table design.
  5. And at the very bottom we have the save settings button that can also be triggered by pressing Cmd/Ctrl + s on your keyboard.

Preview the product table

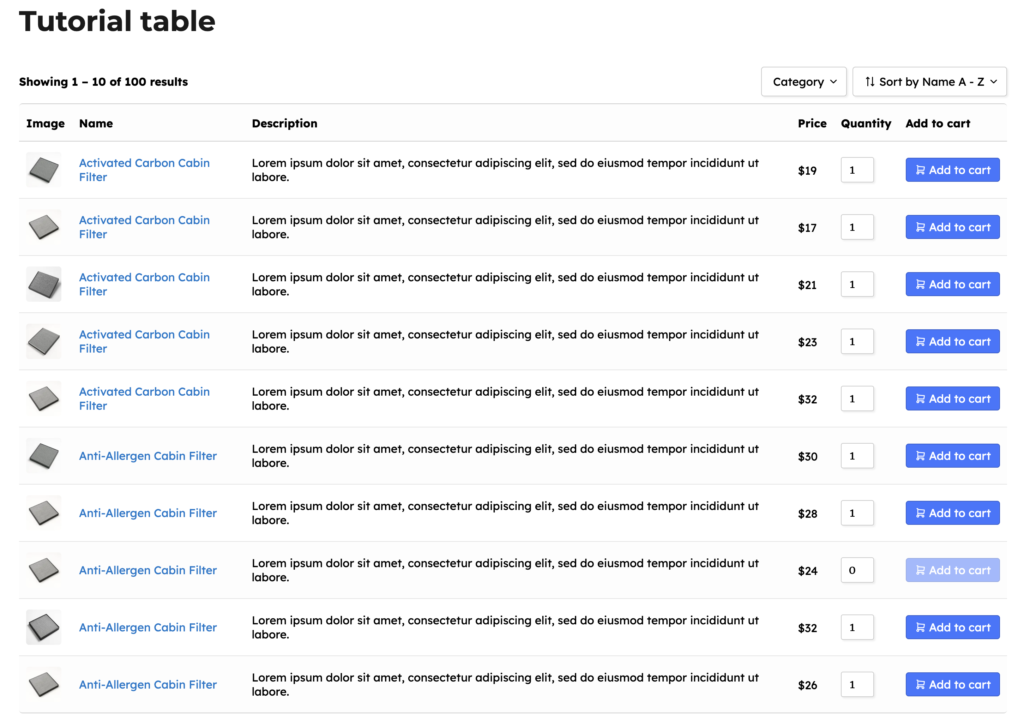

Let’s preview our new product table on our site. For this, copy the the table shortcode from the top of the settings page. Then create a new page on your site and paste the table shortcode on it to view the table on the frontend. Your new product table will look similar to this:

This table was created based on the settings of the preset we selected called ‘Table with description’. Later in this tutorial we’re going to replace the ‘description’ column in this table with new ‘category’ and ‘availability’ columns.

Note: You will see a link labeled ‘Edit table’ below the product table, toward the left. This helpful link lets you quickly jump to the settings of any product table from the frontend. It is visible only to the site admin and will be hidden from site visitors.

Select product category for the table

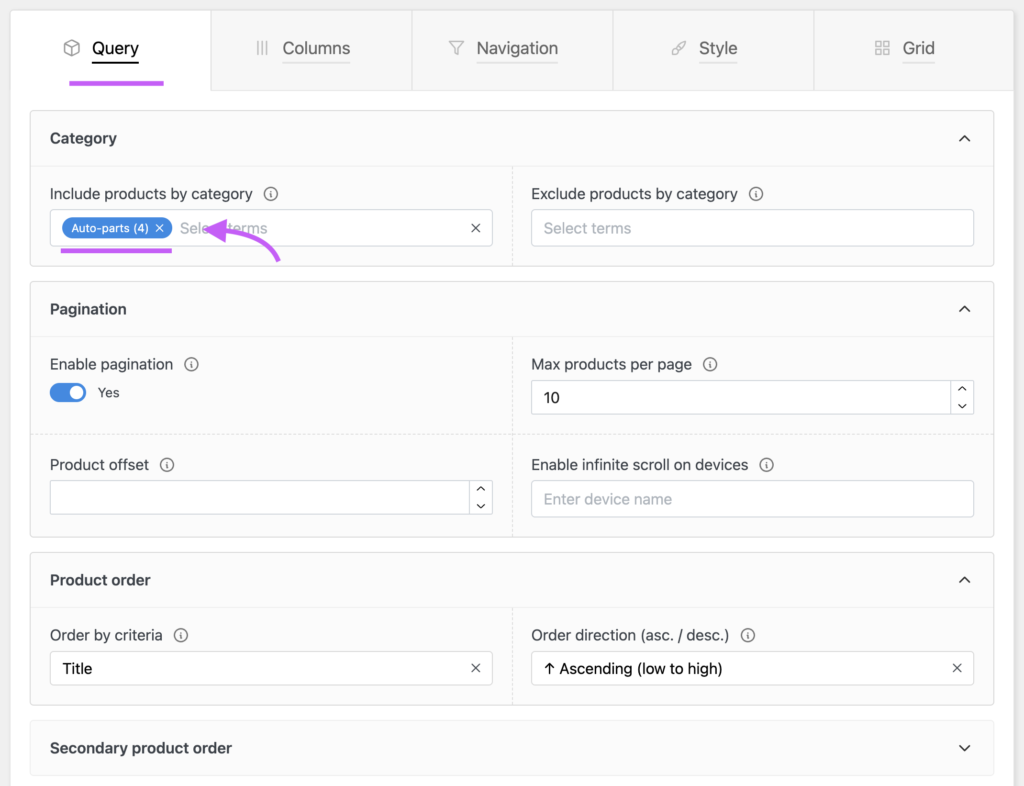

The very first tab is titled ‘Query’. Here we can set criteria for the products that should be displayed in our table. In the category settings of this tab we’ve selected the ‘Auto-parts’ category to show products from that category in our table.

Edit the table columns

The next tab is titled ‘Columns’. Here we can set the columns for our product table.

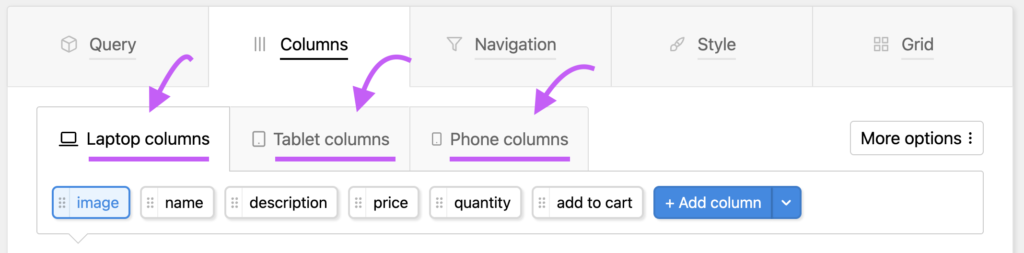

At the top we have tabs for laptop, tablet and phone device types. These tabs allow us to create different sets of columns and layout to suit different screen sizes.

Note: For most sites we recommend setting up only the laptop and phone columns. Tablet columns will be inherited from laptop columns if you simply leave the tablet columns section empty.

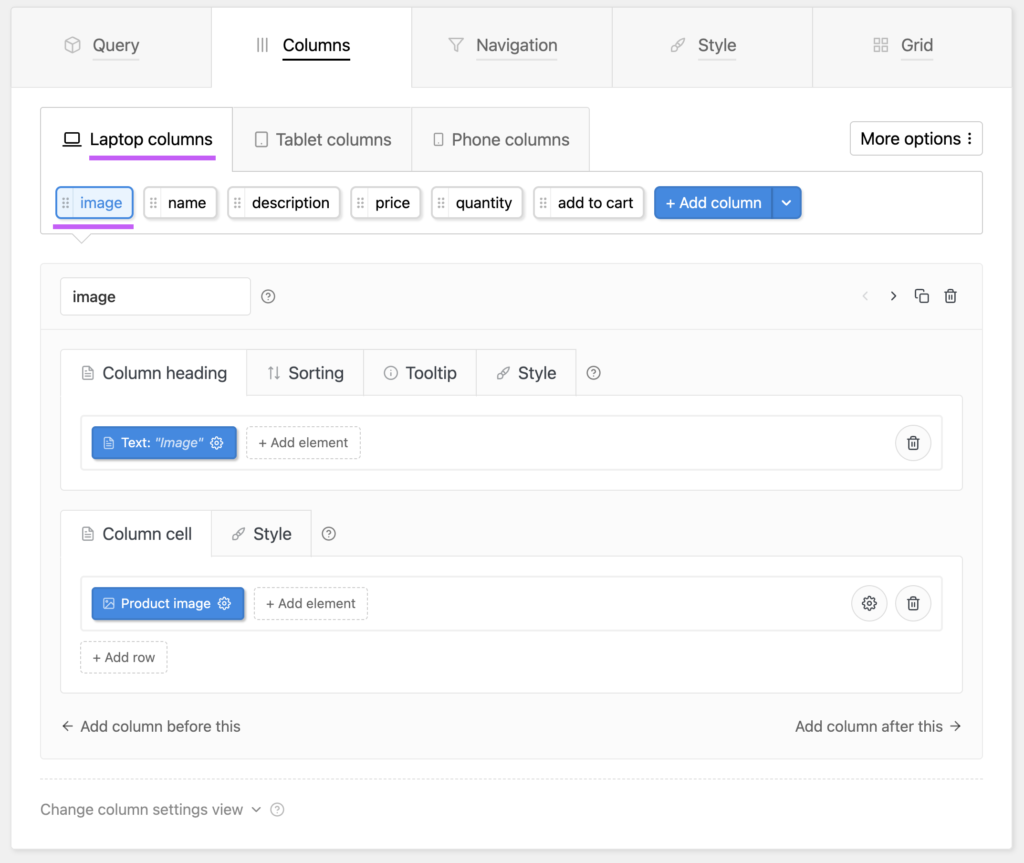

Within the laptop column settings we can see that our preset product table already has 6 columns pre-configured. And the settings of the first column titled ‘image’ have been opened up.

As we’ve mentioned above, we want to replace the ‘description’ column in this table with 2 other new columns showing product ‘category’ and ‘availability’ (or stock).

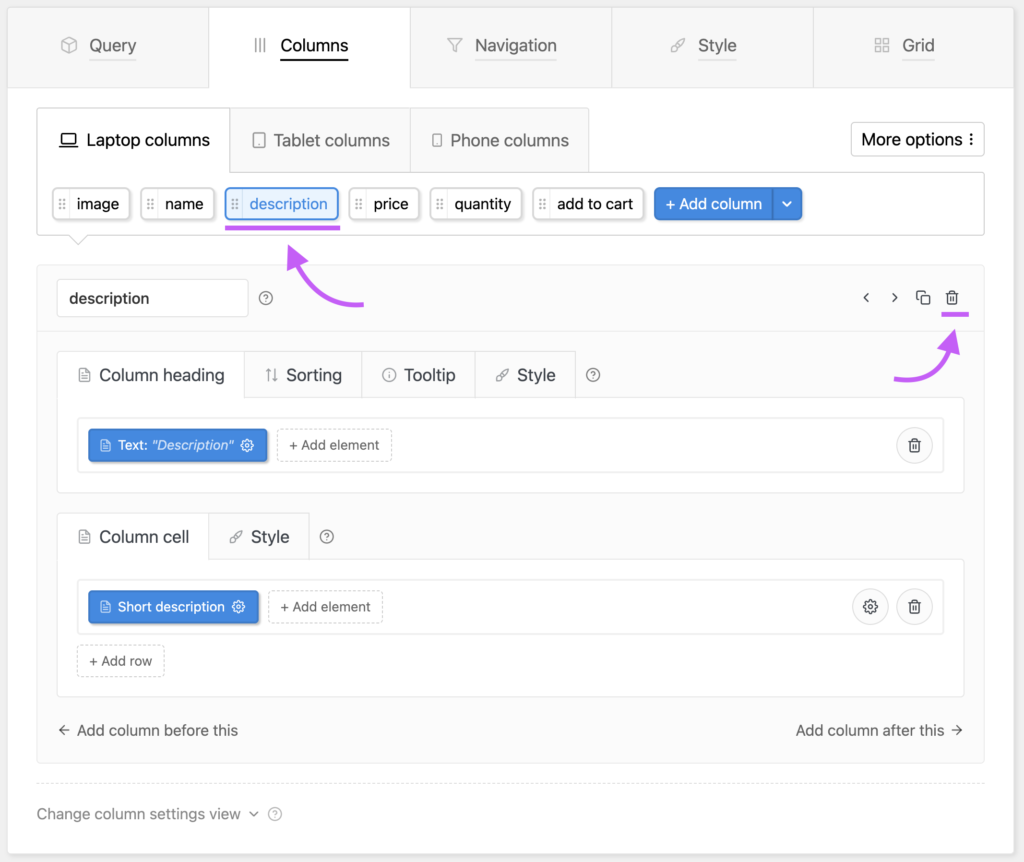

So click on the ‘description’ column button to open that column’s settings. Then click the ‘delete’ button at its top right (trash icon) to remove this column from our table.

To add a new column we can use the blue ‘+ Add column’ button which will create a blank new column that we can configure to show any product property we want.

However, for common product table columns like category, availability etc, the plugin already provides preset columns. Instead of creating a brand new column, let’s make use of this preset columns facility.

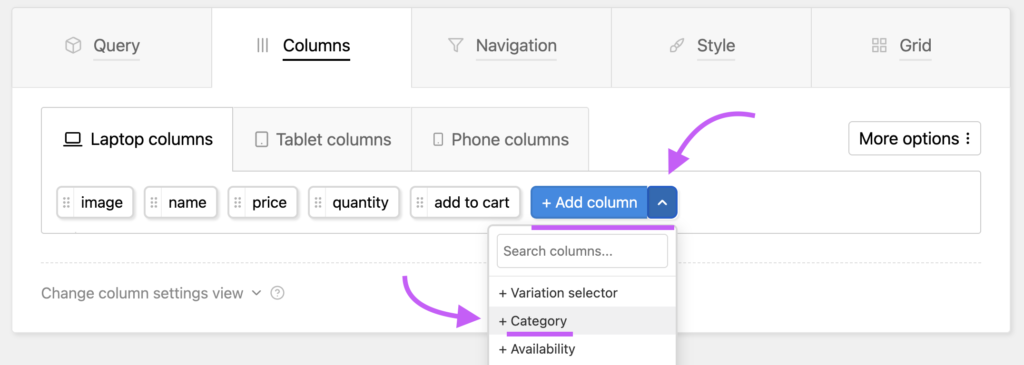

Click the the dropdown icon next to the ‘+ Add column’ button to show a list of the available preset table columns. Then select the ‘Category’ column to add it to the table.

Our new ‘category’ column will be added at the end of the table. We can drag the new ‘category’ column button and reposition it next to the ‘name’ column.

In this same way we can add the ‘Availability’ or ‘Stock’ column to our table from the preset columns list and and place it next to the category column.

Note: The ‘Availability’ column is a PRO version exclusive feature. If you’re using the Lite version of our product table plugin then you can use the ‘Stock’ column instead.

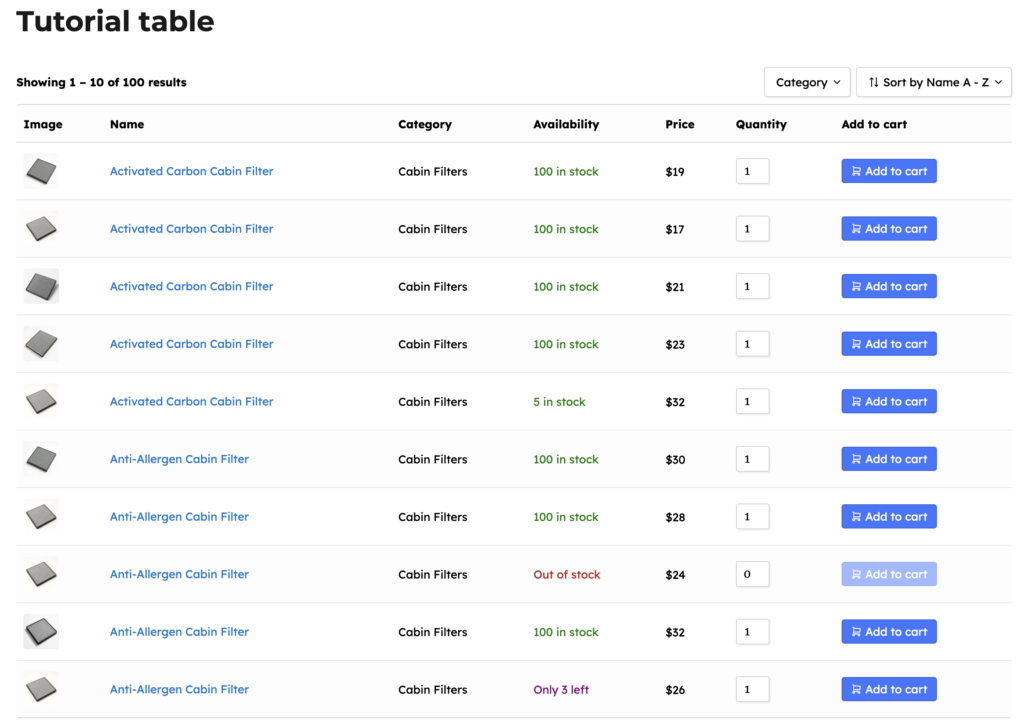

Let’s save our table setting and preview our table changes on the front end (on the same page where we copy pasted the table shortcode earlier). We can see that our table columns have changed based on our new settings. The ‘description’ column is gone and in its place we now have the new ‘category’ and ‘availability’ columns.

Edit table elements

We are now going to see how to modify the elements in the product table. Whenever you wish to change the setting of any element in the product table, first identify in which column the element is placed. Then open that column’s setting in the editor. And then click on the element in the editor. This will open a popup showing the element’s settings.

For example let’s say we need to change the settings of the image element in our product table. What we want is that if visitor hovers on the product image, a magnified version of the image should appear next to it, and if the visitor clicks on the image then a larger version of the image should appear in a light box.

Here is a video demonstration of editing the table’s product image element and steps by step guide below it:

  1. First we identify that the product image element seems to be in the first column in the table.
  2. Next we’ll open the settings of the product table. There is a link labeled ‘Edit table’ under every product table on the front end which is only displayed for the site administrator. By clicking this link you can quickly jump to the settings of the product table.
  3. In the settings of the table we open the ‘Columns’ tab and then in ‘Laptop columns’ we open the very first column labeled ‘image’. And in its cell template we open click the ‘Product image’ element to open its settings
  4. Now a popup opens with the settings of the ‘Product image’ element. We change the settings in this popup based on your requirement. We switch ‘Action on click’ to open image in lightbox and we enable the option that says ‘Show magnified version of image on hover’.
  5. After saving our table settings we check on the frontend and the table’s product image element now shows larger version on hover and opens up in lightbox on click.

In the same way we can change the settings of our quantity element to make it show +/- buttons on the edges.

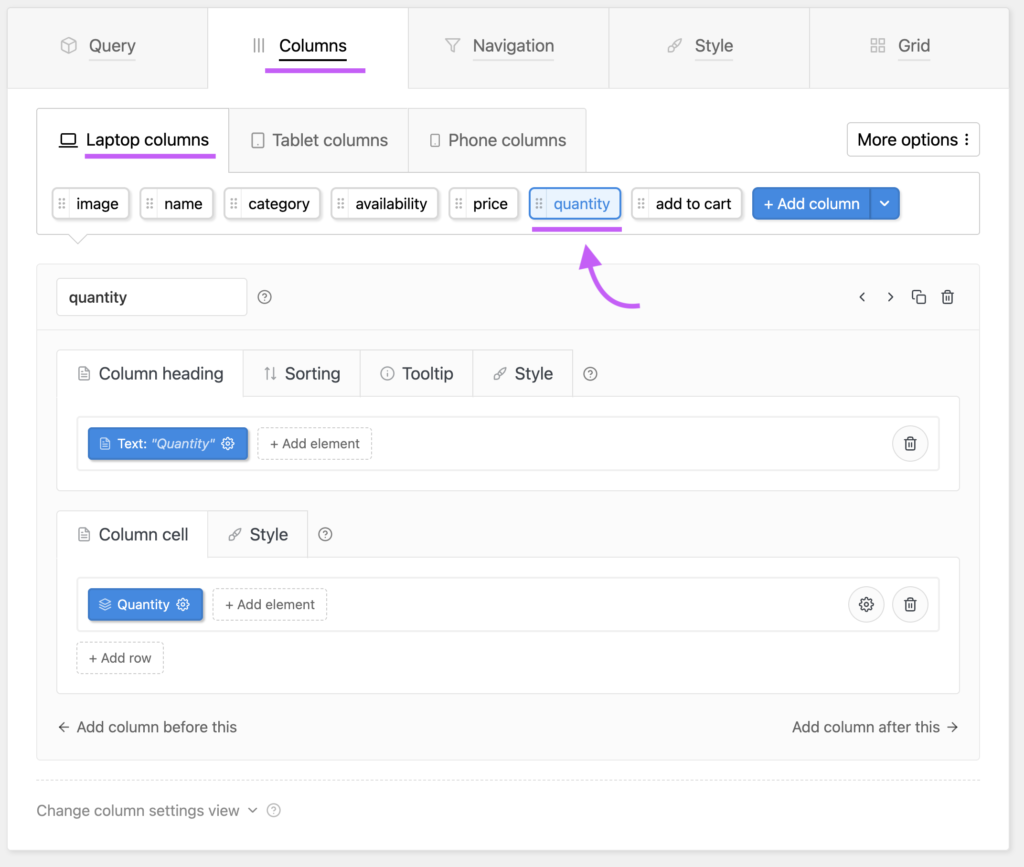

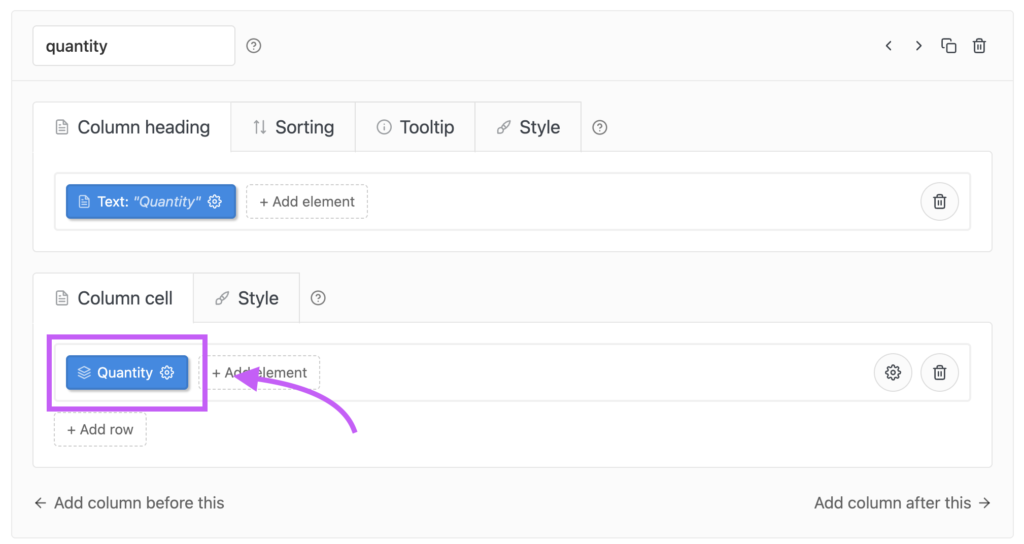

For this we first open the column settings in the table editor that contains the ‘Quantity’ element.

Then we click on the ‘Quantity’ element in the column cell template to open it’s settings.

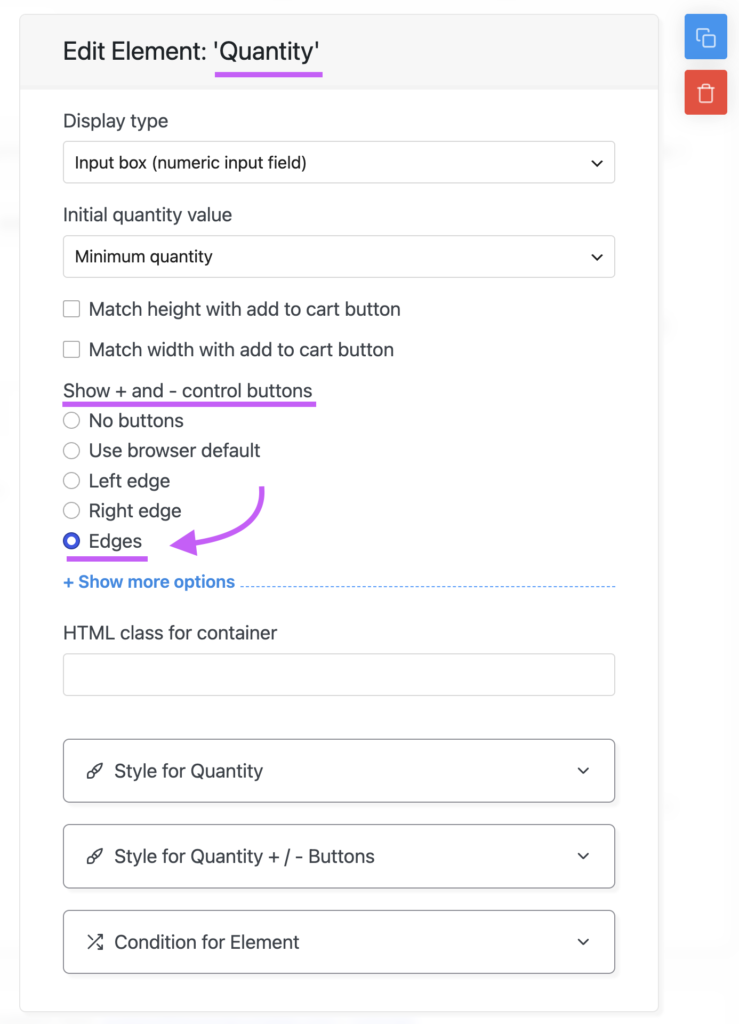

In the ‘Quantity’ elements settings popup we enable the option to show the + / – buttons on the left and right (PRO version facility).

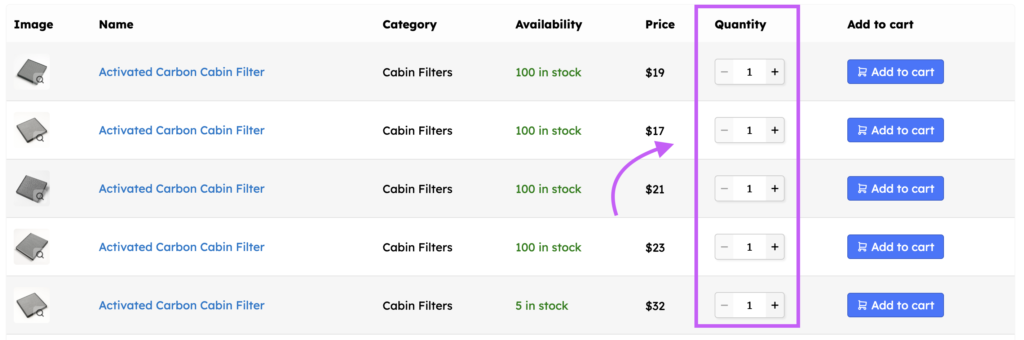

And accordingly on the frontend our quantity input now has + / – buttons on its edges.

Edit table phone columns

Our product table already has preset phone columns. And we can further edit the phone column view based on our requirements.

To view the phone layout of the product table first go to the page with the product table preview. Then you can follow either of these 2 ways to check the table in phone view:

  1. Either narrow down the browser widow.
  2. Or use Google Chrome (or other browser) inspector tool to simulate mobile view. We demonstrate this in the following video:

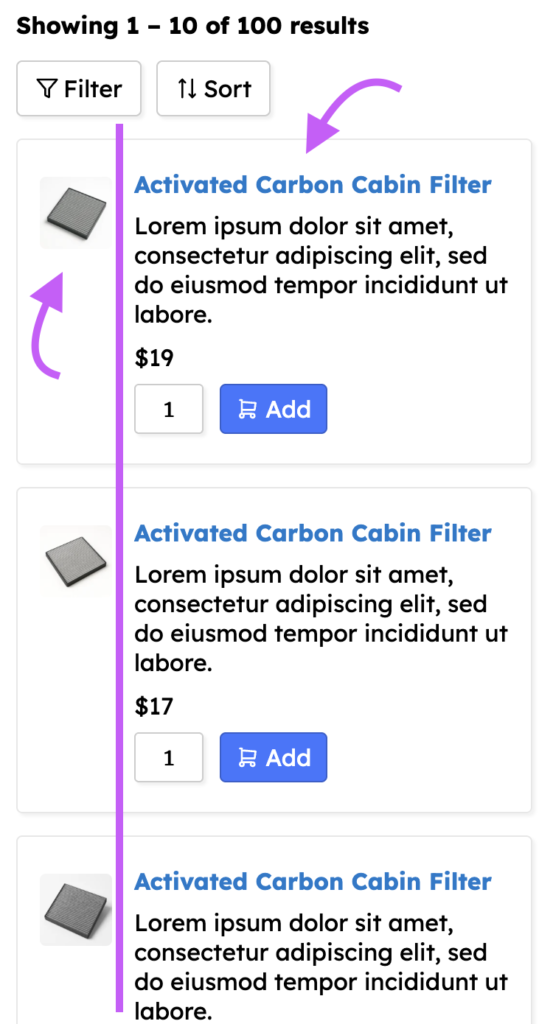

As you can see in the phone view we have 2 columns. In the left side column contains only the product image. The right side column contains all other product details. In the following image we’re drawing a line in between the two columns to help you identify them.

Notice in the preset phone view of our product table we have product description and no availability or category information. Just like the laptop view of our product table, we would like to replace the product description with category and availability information in the phone view as well.

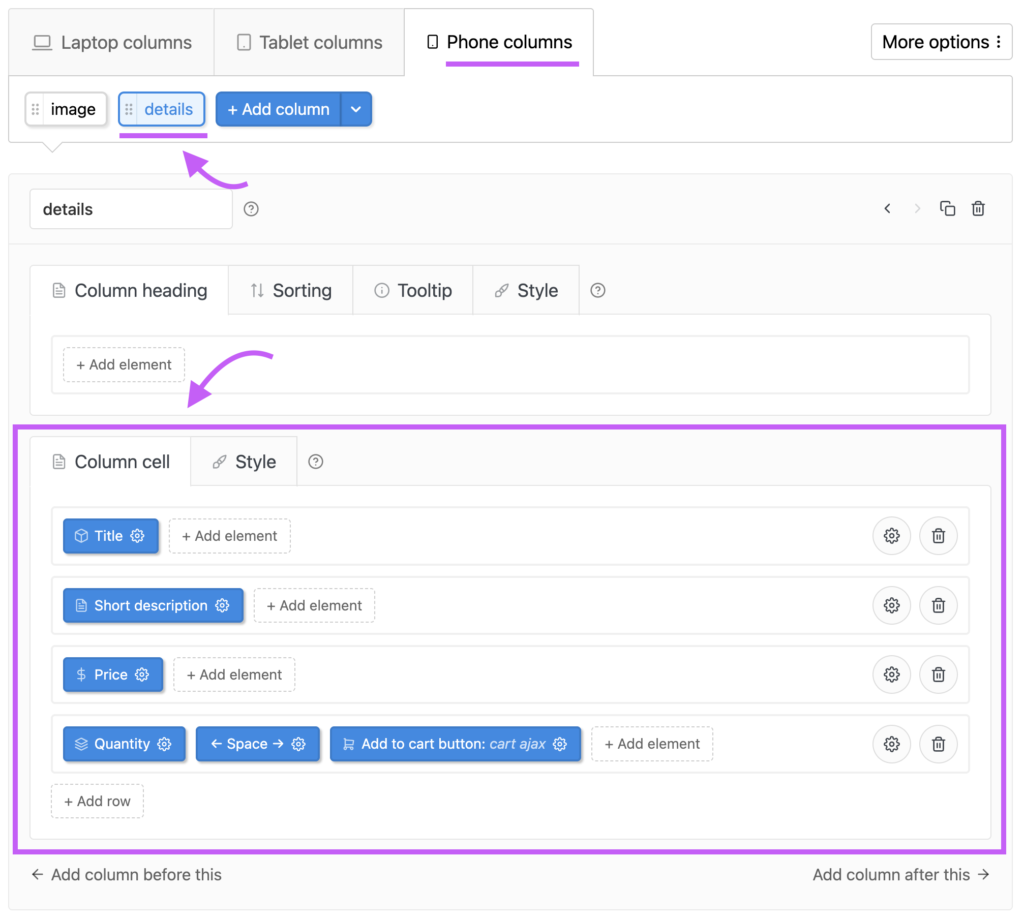

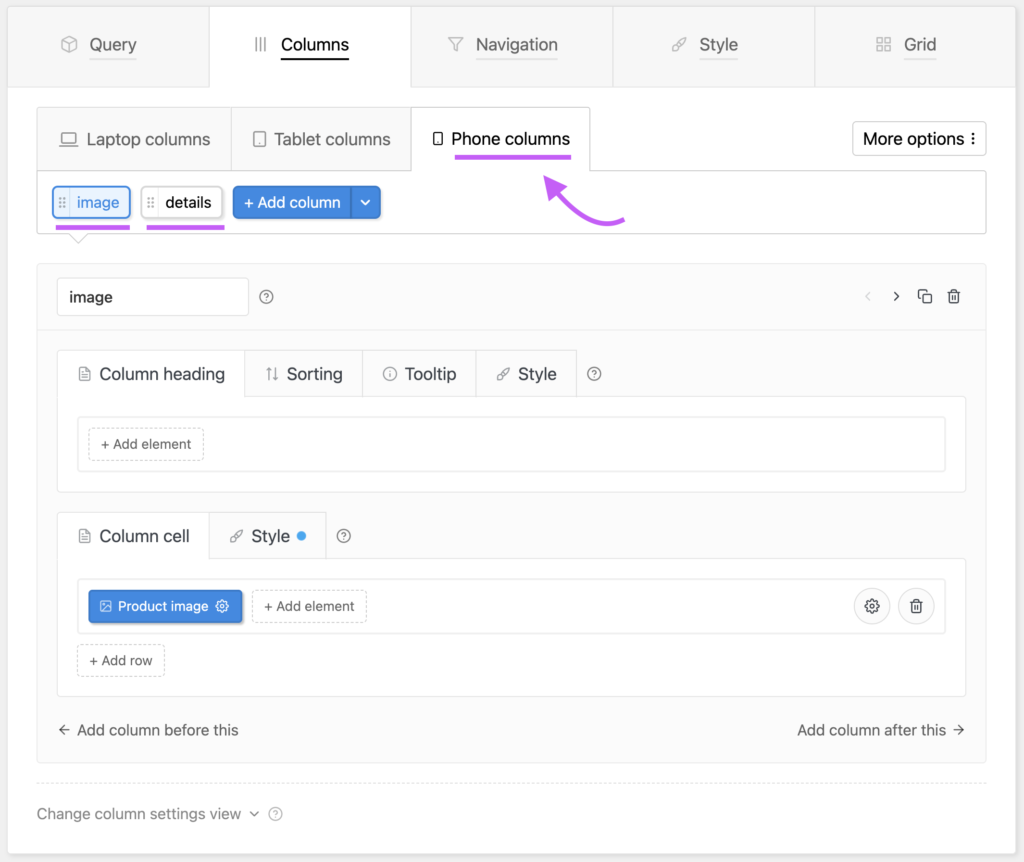

So let’s edit the table’s phone columns. Go to the table settings → columns → phone columns. Here you can see we have 2 pre-made columns:

  1. Image: This column contains a ‘Product image’ element.
  2. Details: This column contains all other product information.

While the ‘image’ column is simple, the ‘details’ column is interesting with several product property elements arranged in multiple rows.

Our product table plugin lets you create multiple nested rows within a column and add multiple elements within these rows. That’s how this layout was created. And we can completely edit this layout based on our requirements.

Since we don’t want the ‘Short description’ element in our product table lets start by deleting it. To do this by click the ‘short description’ element and its settings popup will appear. On the top right of this popup you can see a delete button that you can click to remove this element. Here’s a video demonstration of how to delete the element:

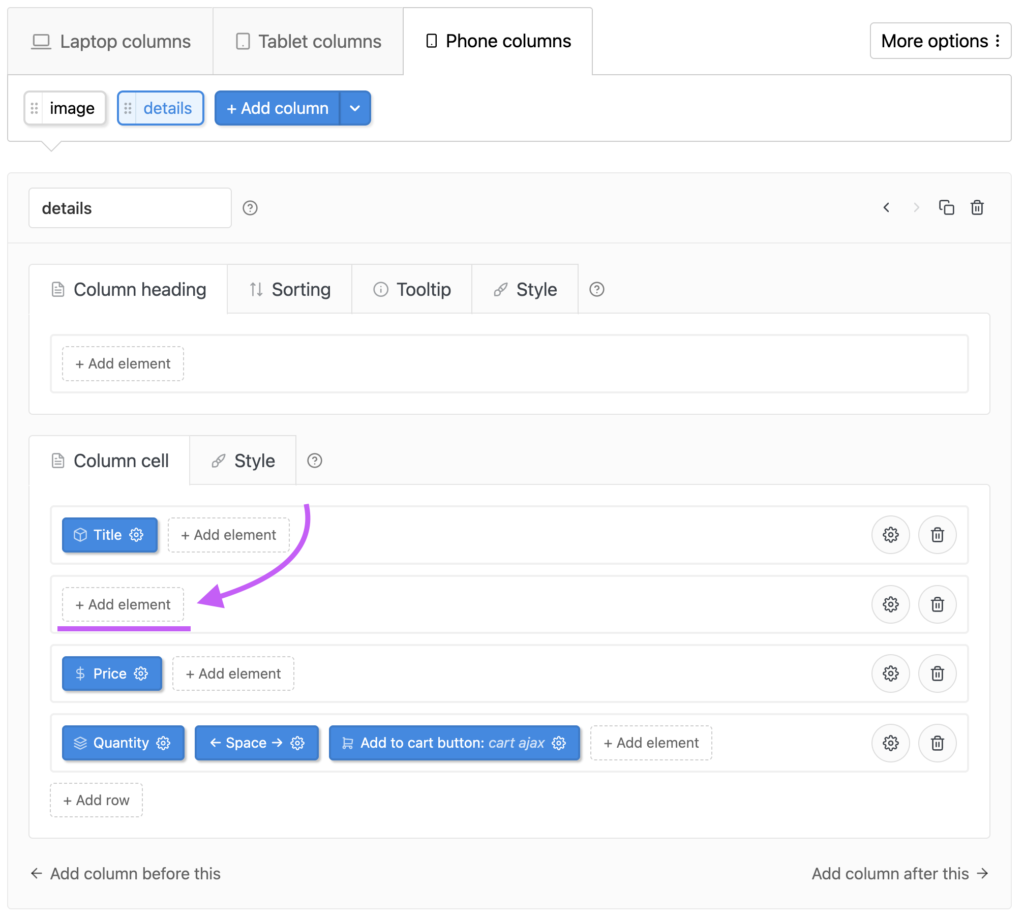

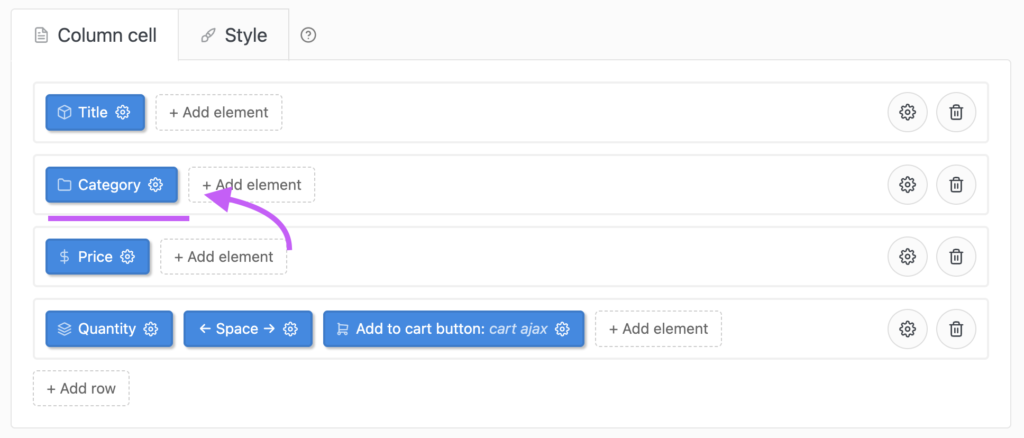

Instead of this element we want to show the product category. To add a new element in the same row where we deleted the ‘short description’ element click the ‘+ Add element’ button.

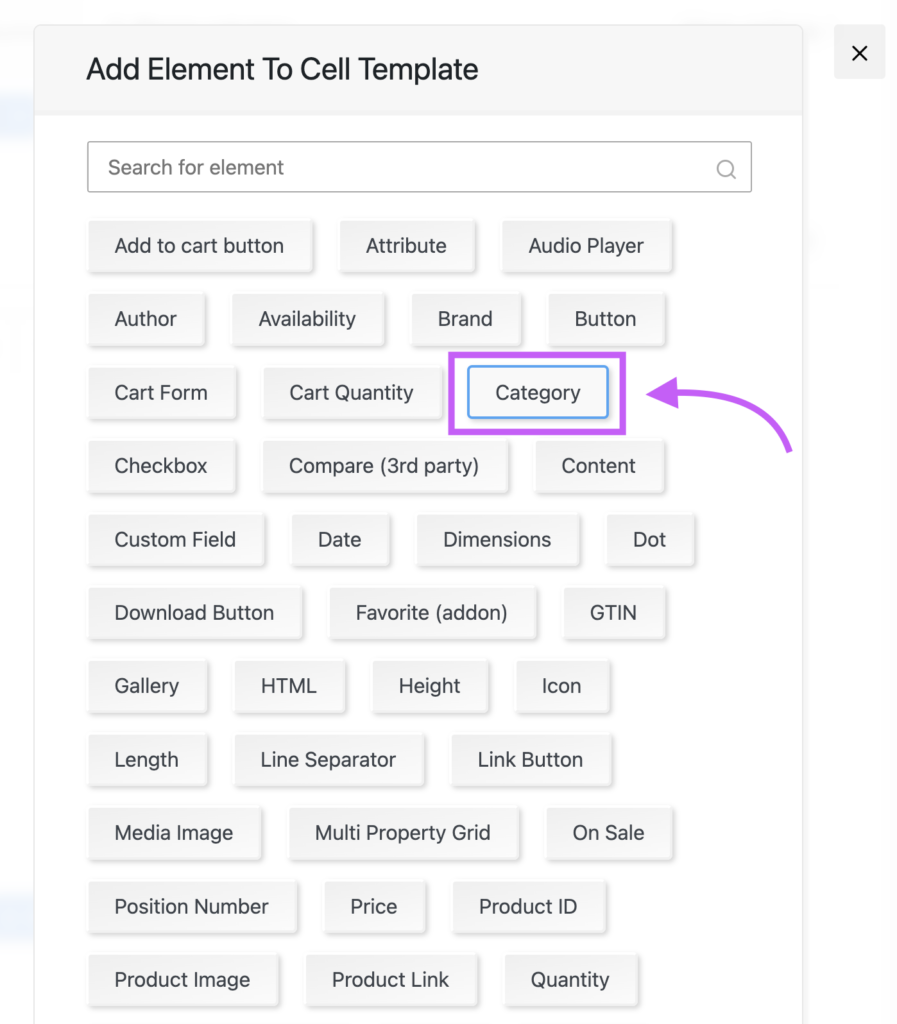

This will open a popup showing a long list of elements you can add to the column. Click the ‘Category’ element to add it.

When you click the ‘Category’ element immediately its settings will open up. Simply click outside of this new element’s settings and you’ll find that it has been added to the column.

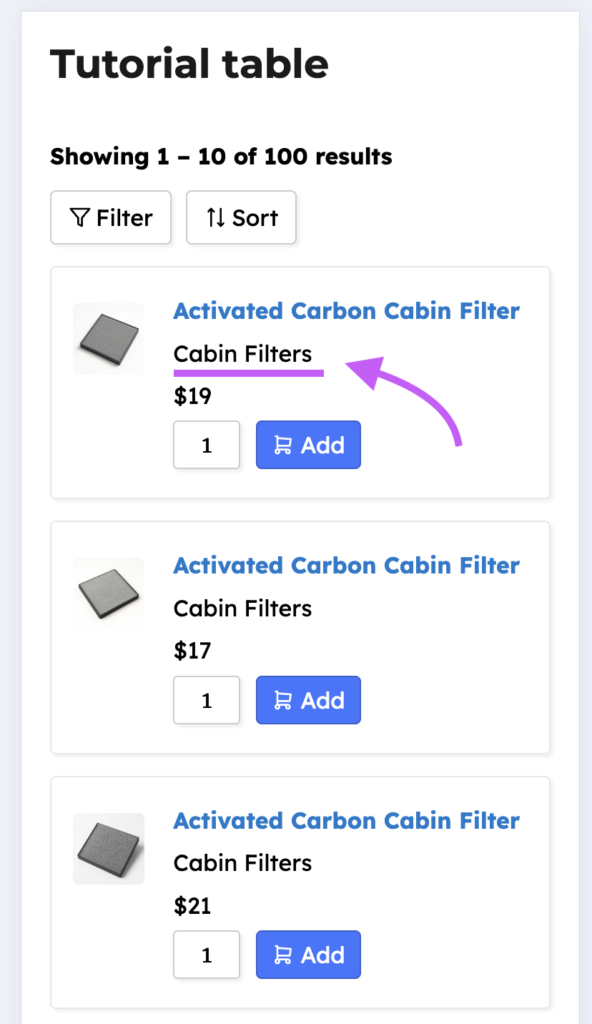

If we save our settings and preview our product table in another window we can see that the product description has been replaced with product category.

Now let’s add the ‘Availability’ or ‘Stock’ element next to our ‘price’ element in the same column. For this we need to click the ‘+ Add element’ button next to the ‘Price’ element and select the new element we want to add to the column.

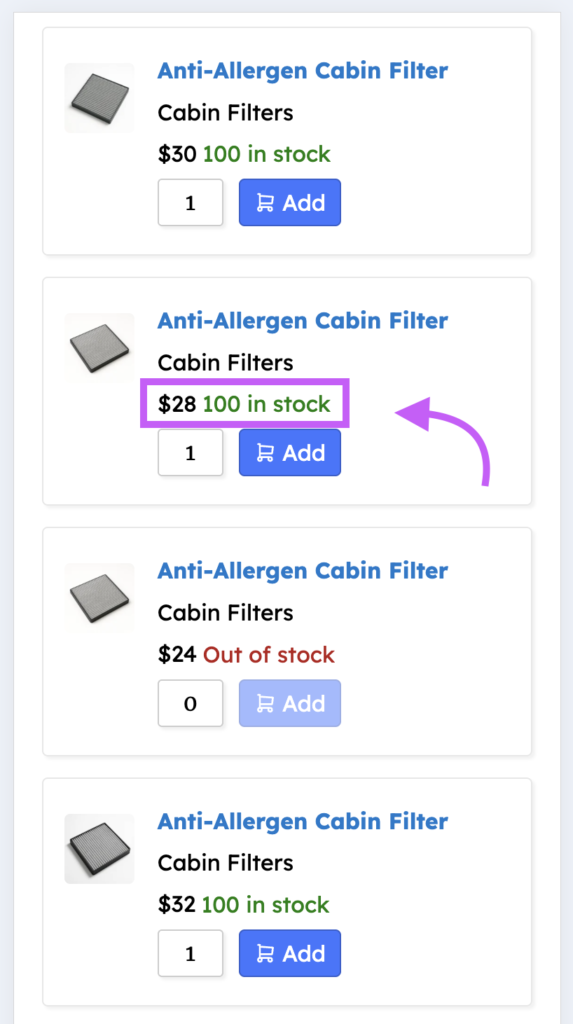

And on the front end we can see that product availability information is now added next to the product price.

However, right now the price and availability elements are too close together. There are two ways that we can add some space between them:

  1. Add the ‘Space’ element between them.
  2. Add the ‘Stick separator’ element between them.

Let’s add the ‘Stick separator’ element after the ‘Availability’ element and then drag and re-position it between the other two elements.

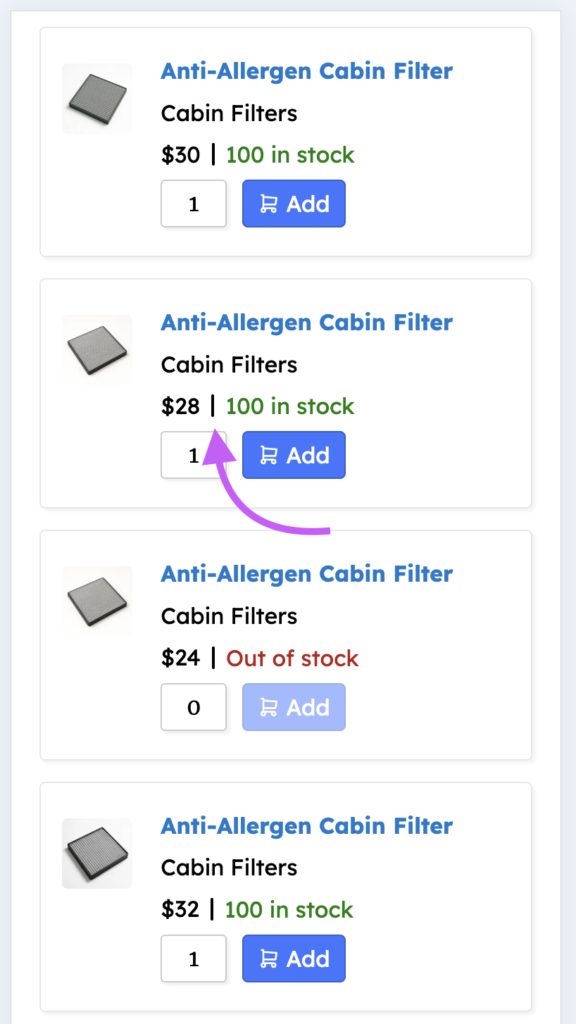

Accordingly on the front end you’ll see a stick separator between the price and availability elements creating a very neat arrangement.

Customize table style

Our product table column layout is now complete so let’s look into applying custom styles on our product table. For this go to the ‘Style’ tab in the table editor.

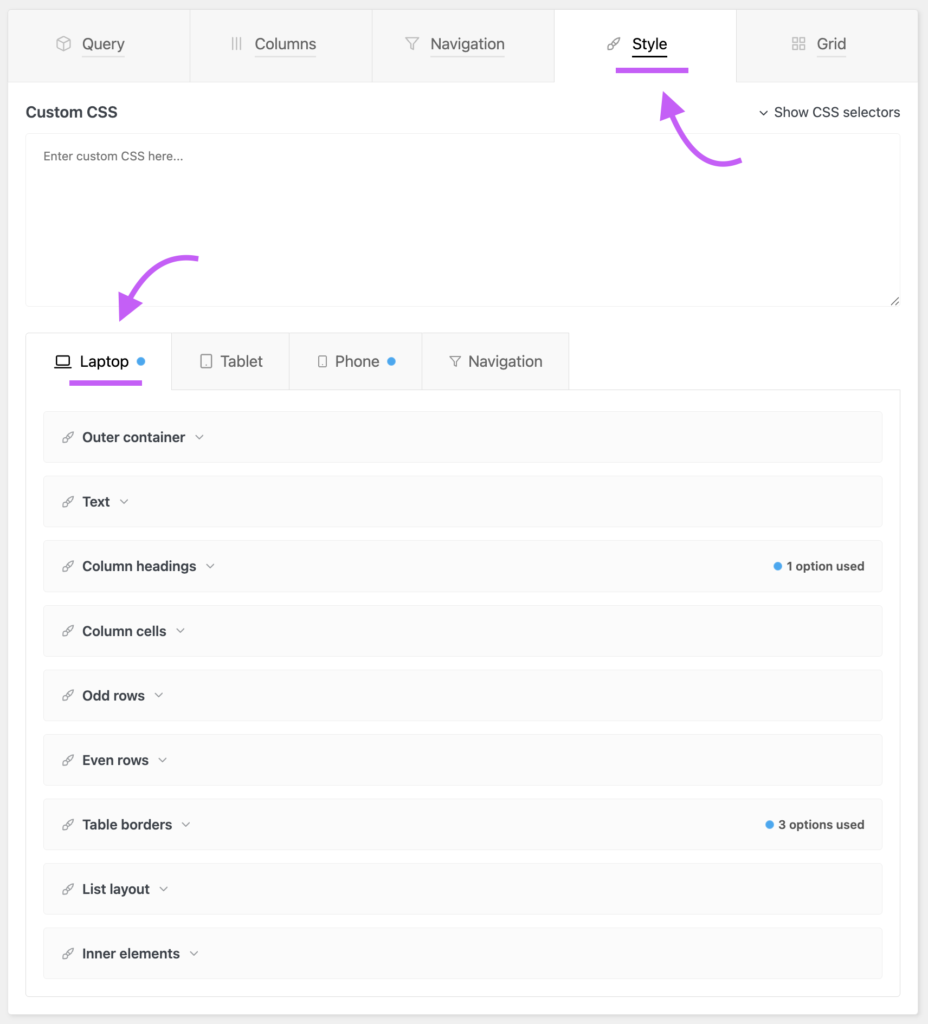

You’ll find 4 tabs in there. The ‘Laptop’, ‘Tablet’ and ‘Phone’ tabs help you apply different styling based on device size and the ‘Navigation’ tab helps you style the table navigation elements.

When you first open the ‘Style’ tab the ‘Laptop’ tab will be open in it by default.

Note: The ‘blue dots’ in the table editor indicate there are user settings in the tab or section. This helps you conveniently keep track of your settings without needing to open all settings.

In the ‘Laptop’ tab you’ll find several sub-sections that contains style settings options for various parts of the product table.

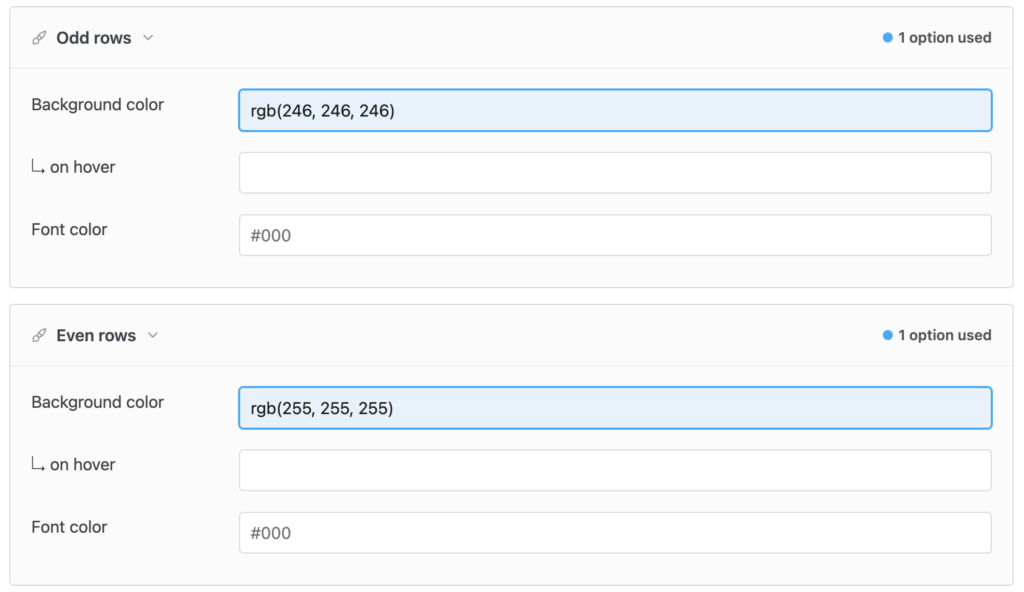

For example in the ‘Odd rows’ and ‘Even rows’ section you can configure the table row background and hover colors.

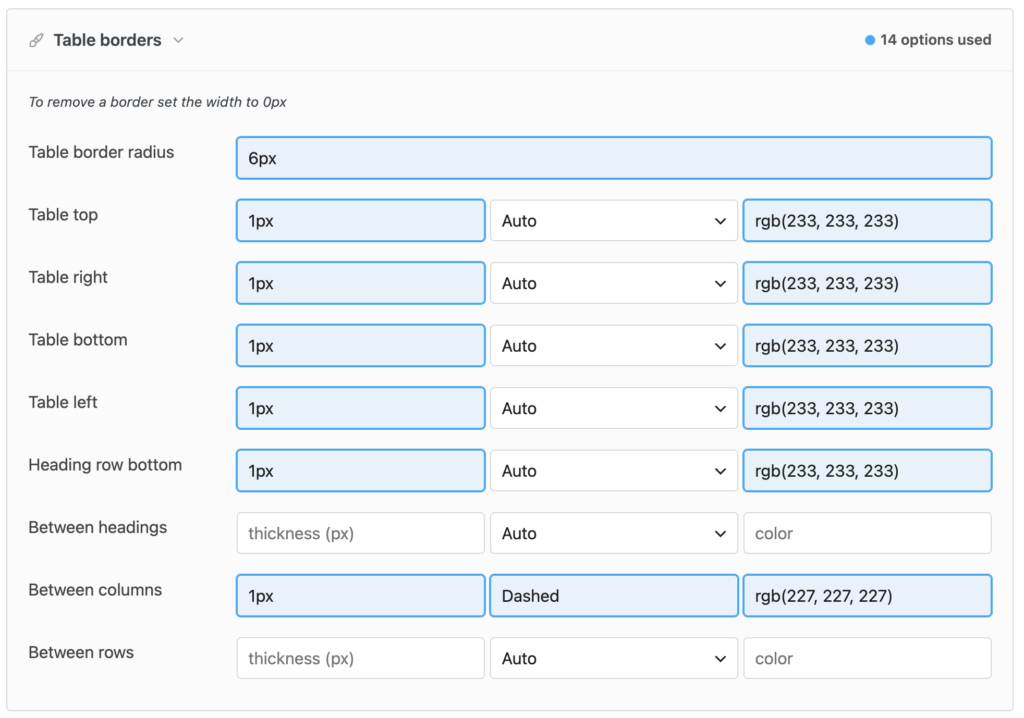

In the ‘Table borders’ section you can change how the table borders look (inner and outer) and the table corner roundness.

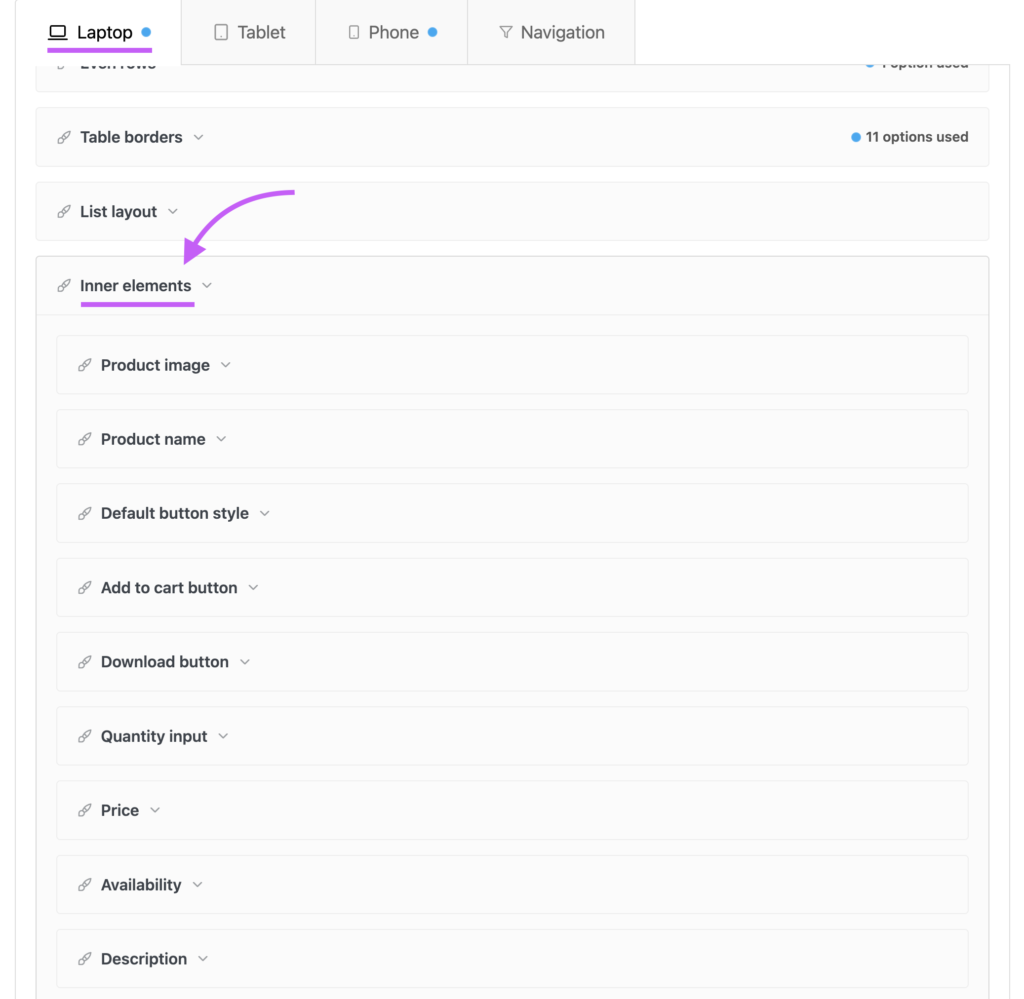

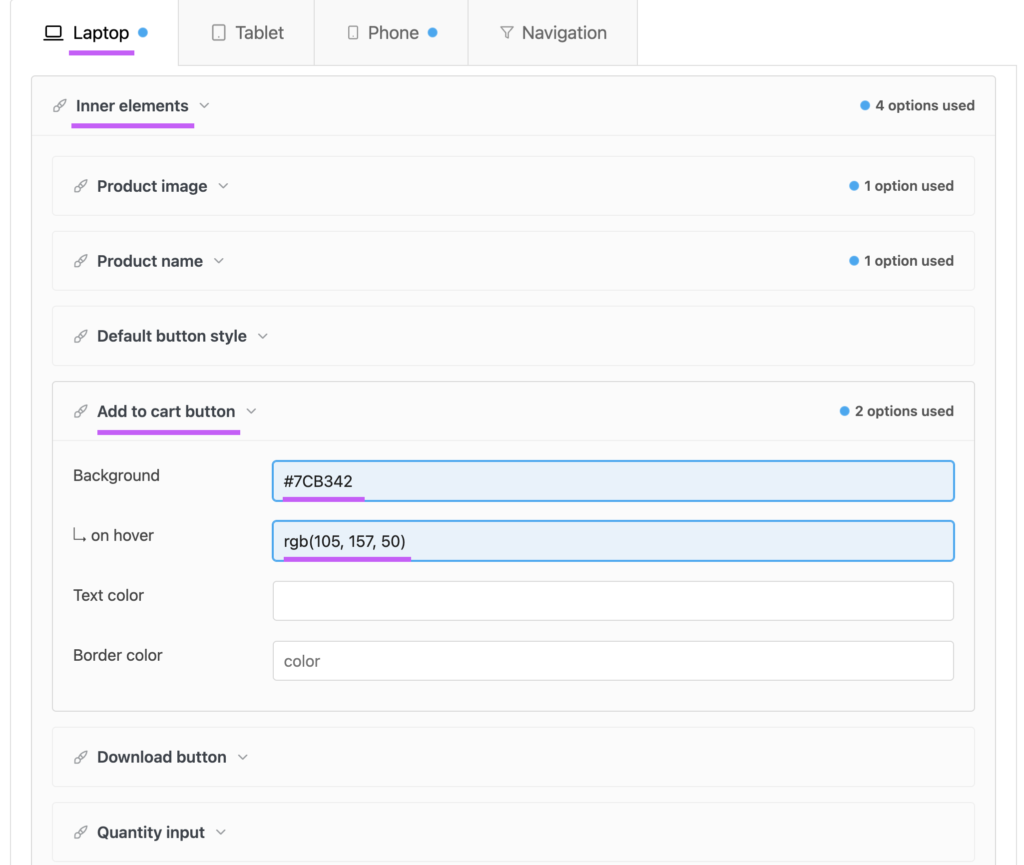

But the most important is the ‘Inner elements’ section. This section contains settings for several product table elements like the Product image, Title, Add to cart button, Quantity input, Price etc.

To edit the style settings of any table element simply open its corresponding section here and configure options. For example here we’re change the ‘Add to cart button’ background:

In this way we can customize the styling of each and every part of our product table to make it match our own store’s branding and design aesthetic.

Configure navigation options

Lastly, let’s see how to edit the navigation options of our product table. For this open the ‘Navigation’ tab of the product table.

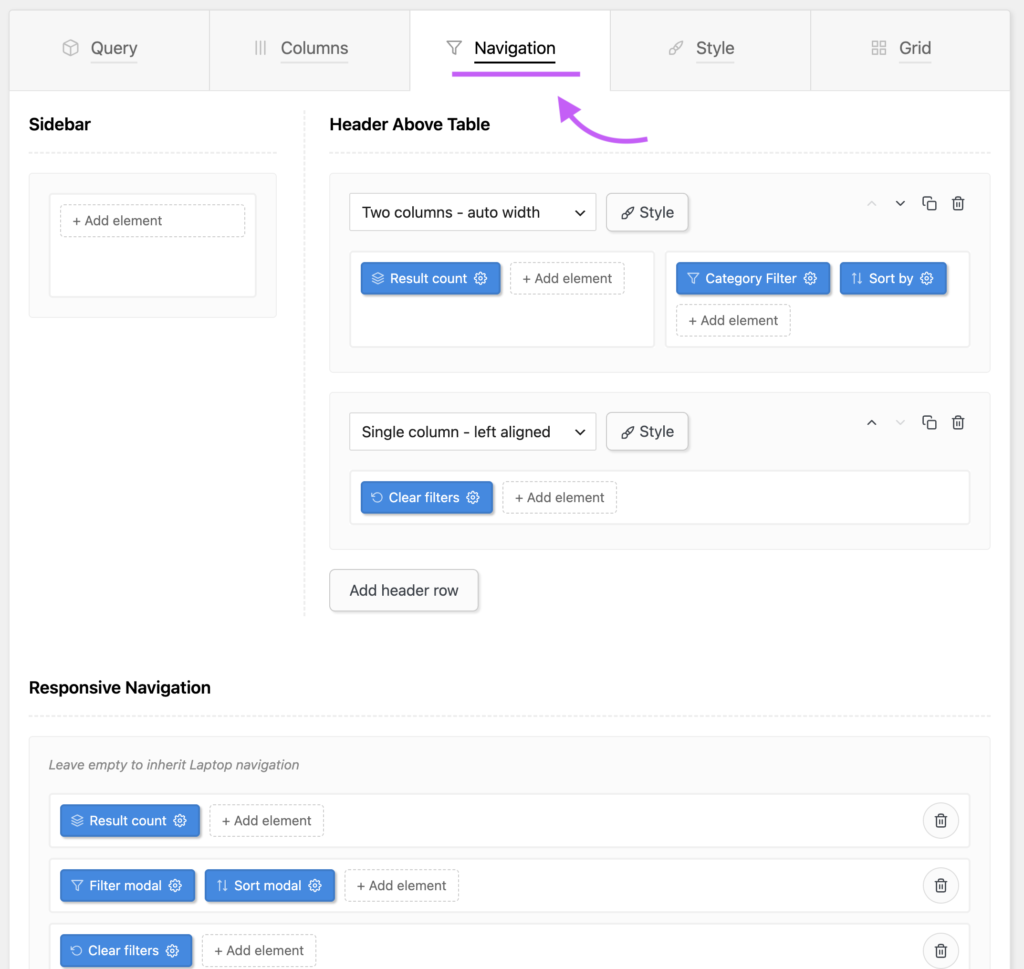

Within the ‘Navigation’ settings tab we have multiple sub-section:

  1. Sidebar: We can add elements here that we want to show in the table sidebar. Leave empty to hide the sidebar.
  2. Header above table: Elements added here are going to appear above the product table. Within this area we can also create multiple nested rows and nested column within those rows.
  3. Responsive navigation: If we leave this section empty the plugin auto-configures the navigation options on phones based on laptop navigation setup.
  4. Other navigation settings: There are several other navigation options grouped here such as pagination, adaptive filtering, lazy load, etc.

For our tutorial table we wish to adjust only the navigation header above the table. We’ll leave the sidebar empty and we won’t change the responsive navigation section settings here.

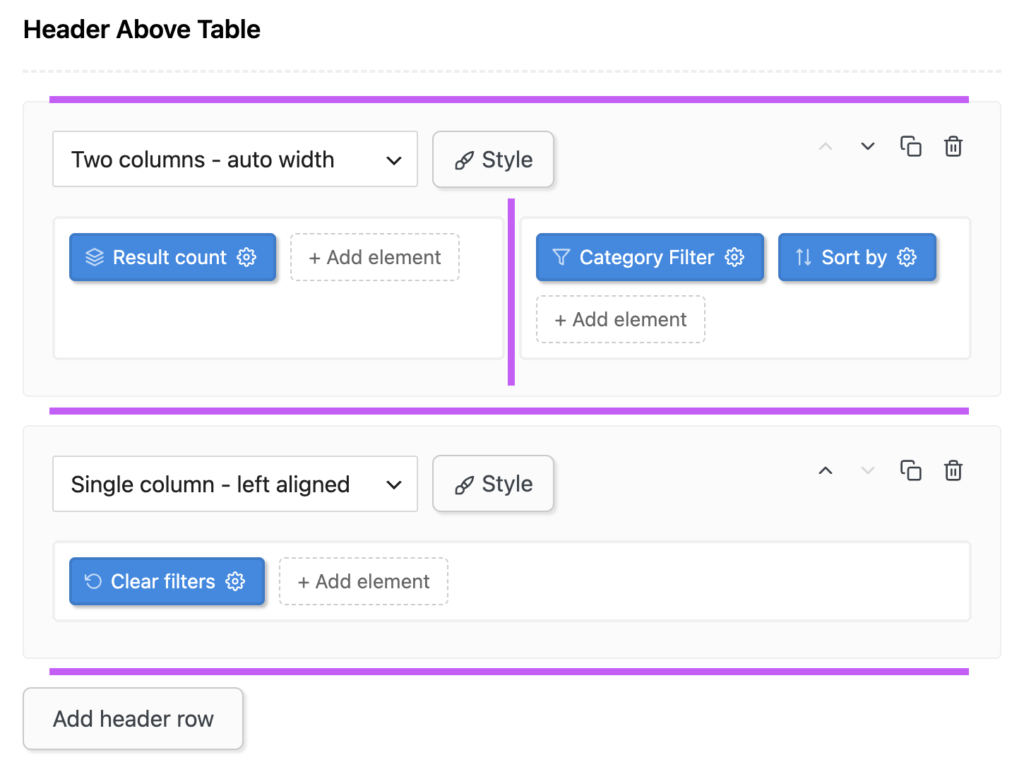

Currently our table’s navigation header section has 2 rows above the product table:

  • Row 1: The first row is further split into 2 columns:
    • The left hand side column has the ‘Result count’ element which prints text informing shoppers about the number of results found
    • The right side column has the ‘Category filter’ and ‘Sort by’ dropdown elements.
  • Row 2: The second row in the navigation header has a single element titled ‘Clear filters’. This element doesn’t appear on the front end unless viewer has selected some filters. Any visitor selected filters are going to be printed in this ‘Clear filters’ element.

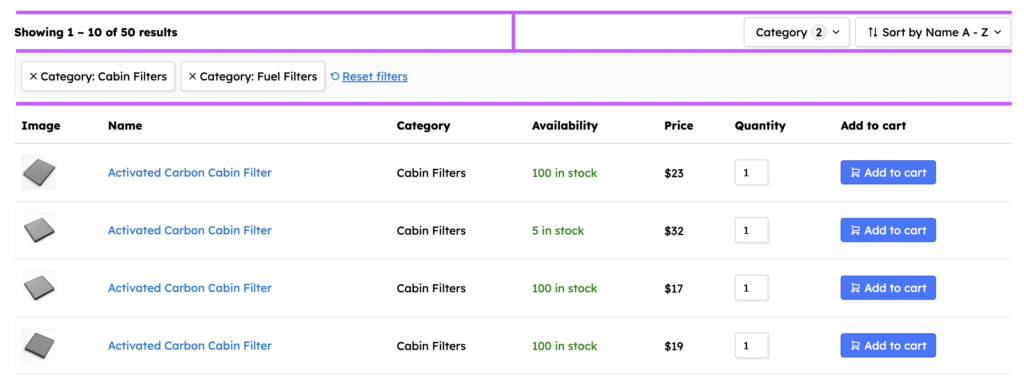

Below we’ve added lines on the front end navigation area to show you this row-column split. As you can see the navigation elements on the front end also follows the same structure:

Note: In the above example we’ve applied some category filters via the category filter dropdown on the right hand side. We did this to make the clear filter options appear otherwise the second row would be hidden.

Modifying navigation elements

Let’s look into modifying the settings of these elements.

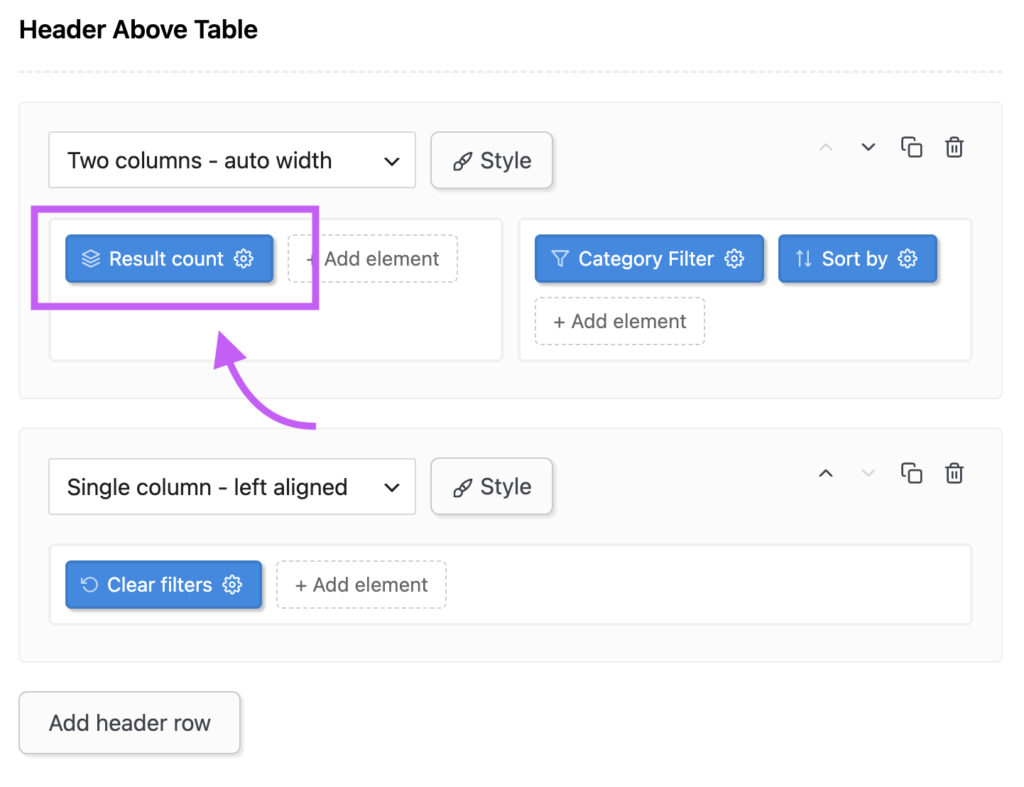

The ‘Result count’ element prints the number of results found and the group of results being displayed for current page. For example it may shop messages like:

  • Showing 1 – 10 of 100 results
  • Showing all 5 results
  • No results found

We can modify these messages by changing the the text templates used by the ‘Result count’ element. For this click the ‘Result count’ element to open its settings popup.

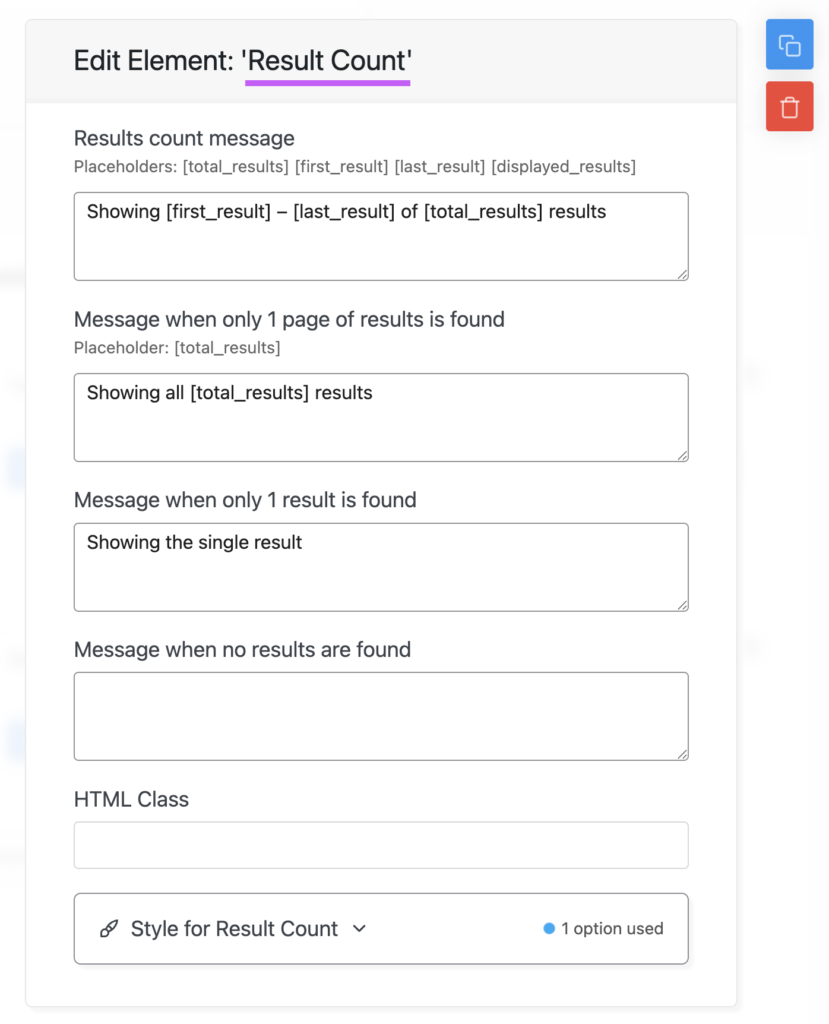

In the settings of the ‘Result count’ element you’ll find option to modify the text templates used for its messages. You can change any of these and the messages on the front end will be modified accordingly.

For example if we changed the ‘Result count message’ template from

Showing [first_result] – [last_result] of [total_results] results

to:

[first_result] – [last_result] of [total_results] products

Then on the frontend instead of saying:

Showing 1 – 10 of 100 results

it would say:

1 – 10 of 100 products

Now we know how to edit the settings of our navigation elements. Just click the navigation element and its settings popup will appear. You can modify the element’s settings there.

Adding elements to table navigation

Next, let’s see how to add new elements to the navigation header. We’re going to add 2 new elements:

  1. A new ‘Search’ element on the left side column.
  2. A new ‘Availability filter’ element in the right side column.

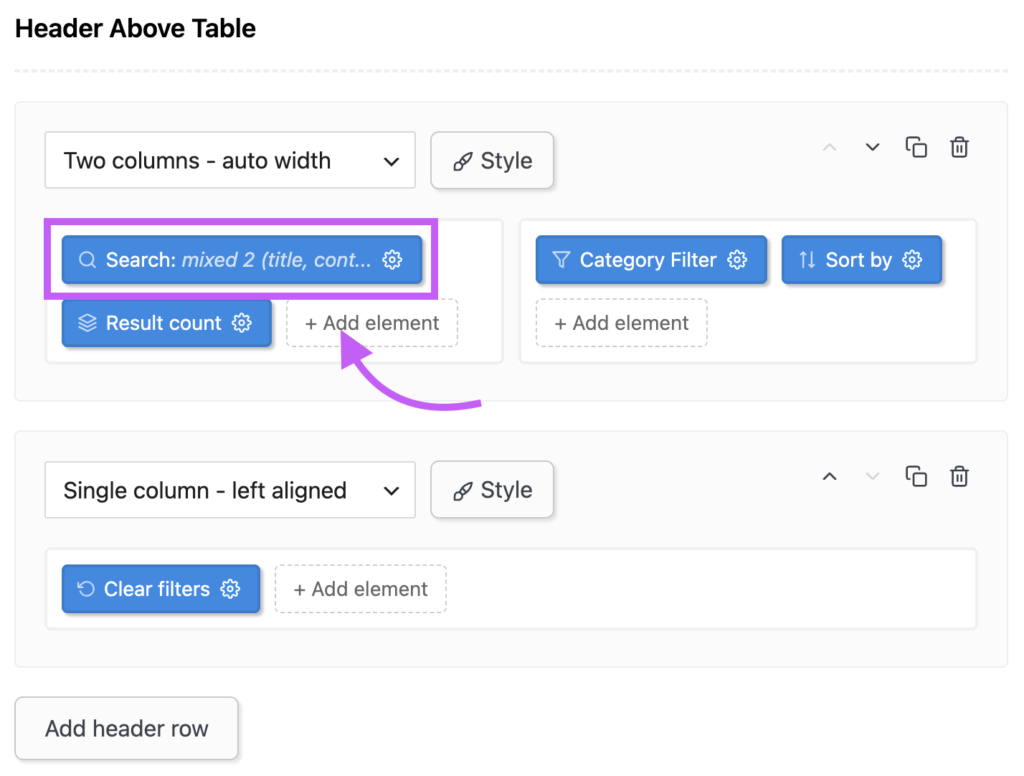

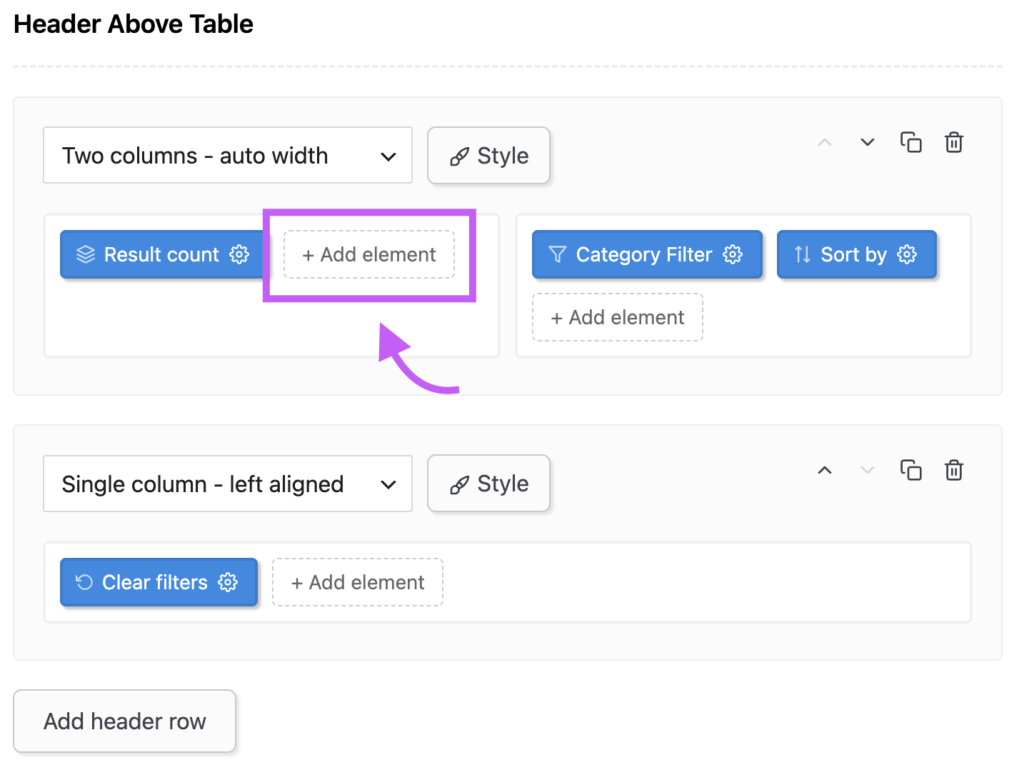

Next, let’s add a ‘Search’ field before the ‘Result count’ element. For this, click the ‘+ Add element’ button next to it.

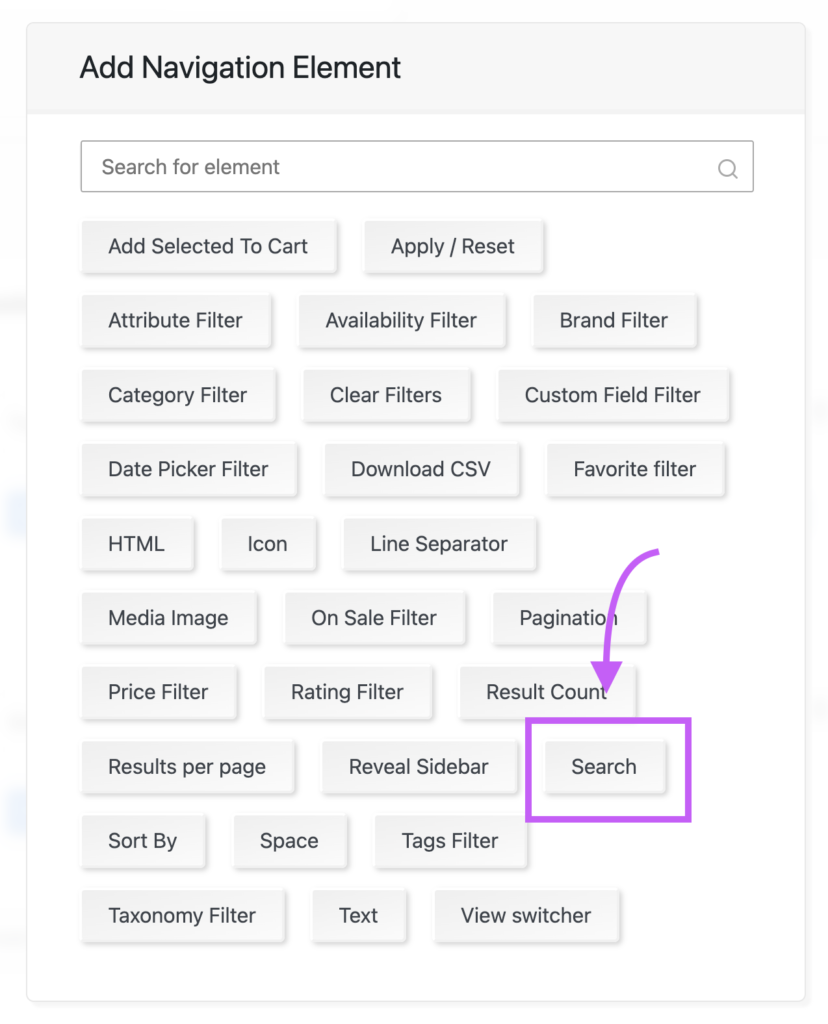

This will open a popup with various elements that you can add to the table navigation. Click on the ‘Search’ element to add it.

Then click outside its settings popup to close it. You’ll find that the ‘Search’ element has been added to the navigation header. Drag and position it before the ‘Result count’ element.

In the same way add the ‘Availability filter’ element in the right hand side column and position it as the first element.

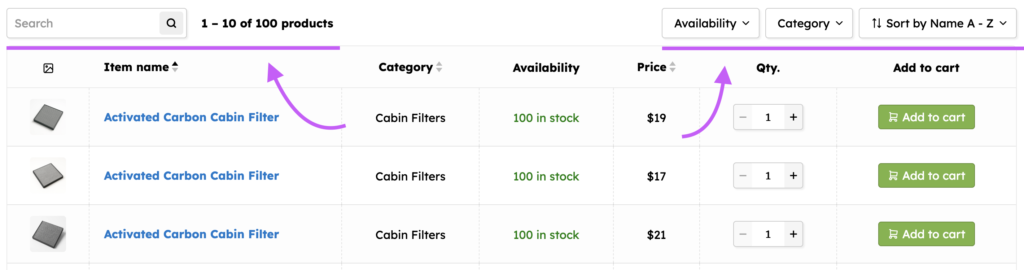

Now we have successfully modified our table navigation header with new ‘Search’ and ‘Availability filter’ elements as we wanted.

Tutorial completed!

And that’s all for this tutorial! By following along you’ve successfully created and customized a woocommerce product table for your shop. We recommend using the lessons from this tutorial to experiment and create more customized product tables. We hope you enjoyed this tutorial. In case you got stuck anywhere feel free to reach out to us via the support form.
